verified IEC 61850 Process Bus · PTPv2 Layer-2 · Apache-2.0

PTP visibility for engineers who need answers before Process Bus testing goes blind.

Process Bus Timing Lab is a Windows PTP lab simulator and timing-health monitor for IEC 61850 FAT, SAT, analyzer validation, and Process Bus troubleshooting. Use it to validate PTP visibility, VLAN/QinQ paths, analyzer decoding, and controlled timing symptoms before deeper SV and GOOSE testing.

download Download portable EXE code View on GitHub

PTPv2 Layer-2VLAN / QinQRAW NIC self-testTiming health

Safety boundary: built for lab visibility and analyzer validation. It is not a certified grandmaster, GPS clock, hardware-timestamped timing source, or relay-acceptance reference.

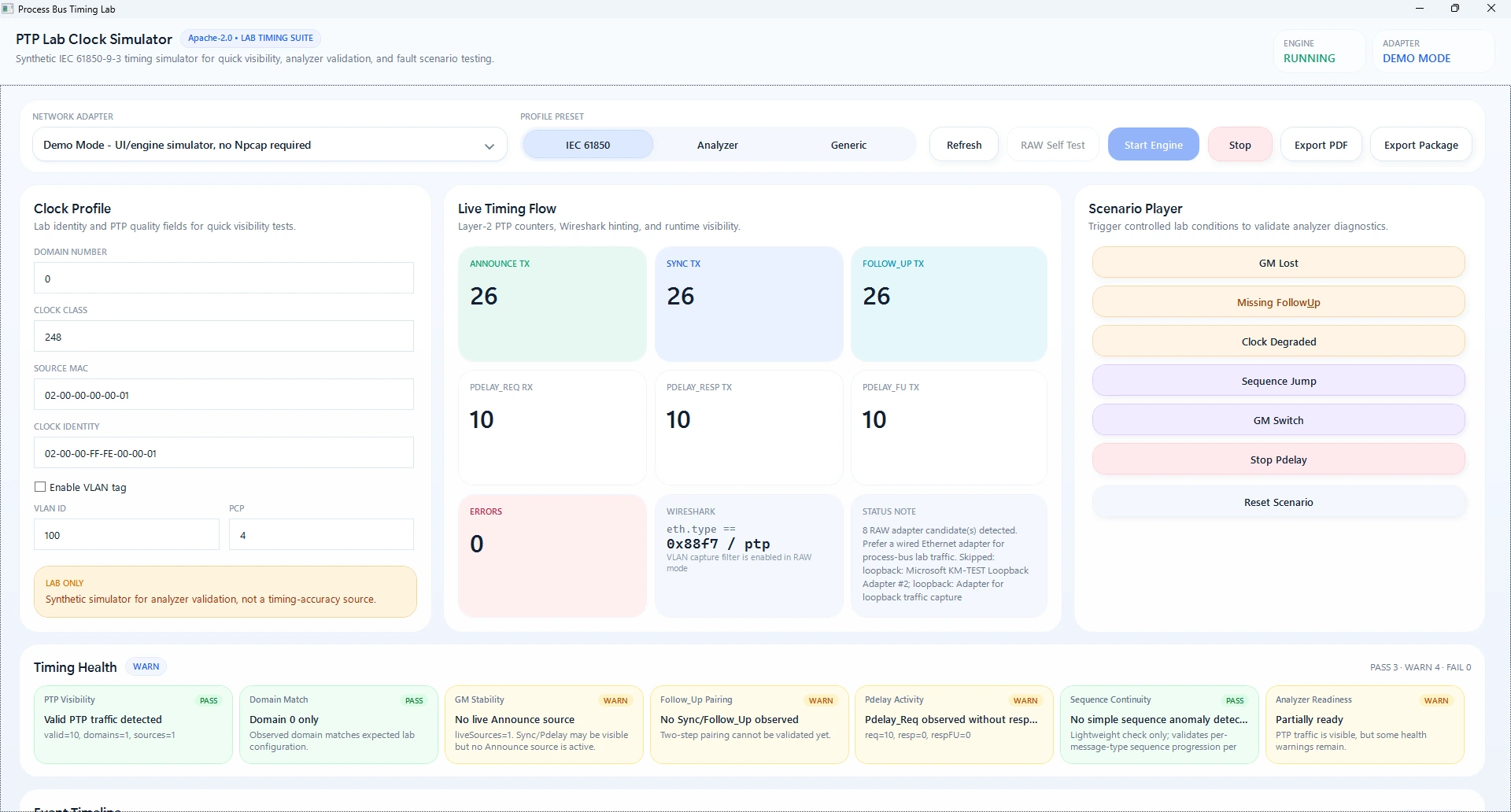

Process Bus Timing Lab WPF dashboard showing PTP timing flow, scenario player, VLAN settings, and timing health cards

01See timing traffic

Confirm Layer-2 PTP visibility on the selected NIC before analyzer work starts.

02Validate decoding

Generate controlled Announce, Sync, Follow_Up, and Pdelay patterns.

03Check VLAN path

Exercise untagged, VLAN, and QinQ PTP frame handling.

04Export evidence

Keep short timing-health reports for FAT/SAT notes and engineering discussion.

rocket_launch Download and run

Portable Windows EXE packages for lab engineers.

Use the WPF dashboard for guided sessions or the CLI for repeatable protocol smoke validation, adapter listing, RAW self-test, passive monitor, and evidence export.

desktop_windowsDesktop portable EXERun the WPF timing dashboard without opening Visual Studio. terminalConsole portable EXEUse CLI validation, RAW self-test, and scriptable lab checks. menu_bookQuick startInstall Npcap, select a NIC, run self-test, and inspect Wireshark.

play_circle Guided demo

See the product flow before downloading the portable EXE.

The demo highlights the real dashboard workflow: live PTP counters, scenario player, timing-health cards, RAW NIC status, and VLAN setup.

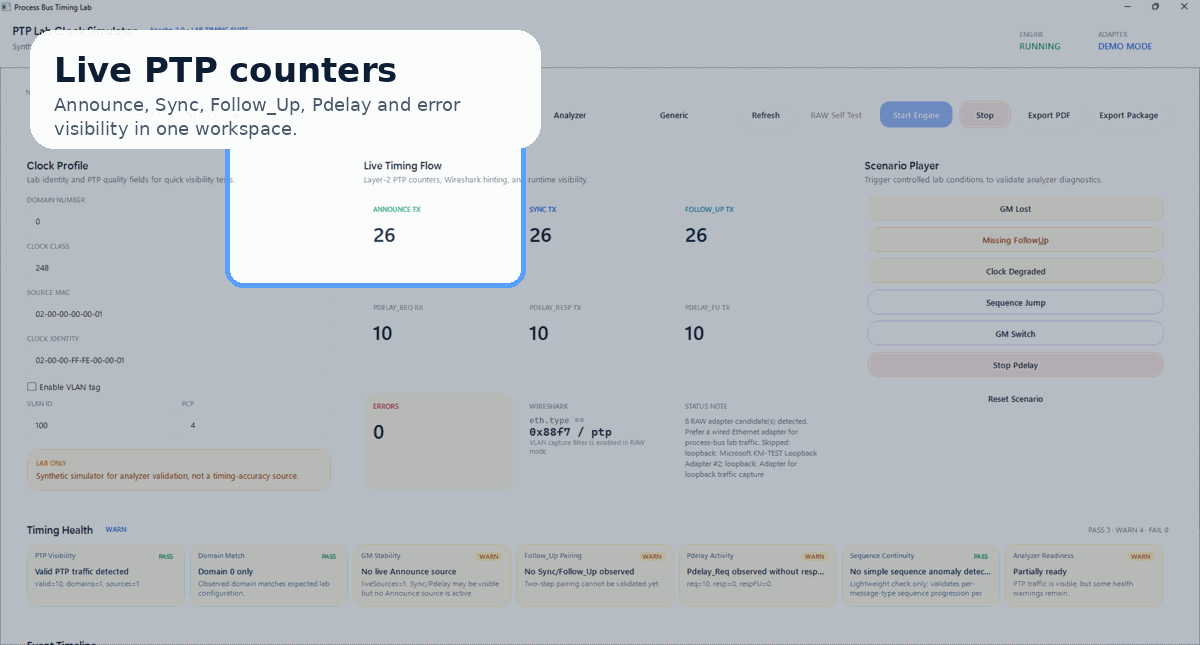

Animated Process Bus Timing Lab dashboard demo showing PTP counters, scenario player, timing health, RAW NIC, and VLAN workflow

hub Built for practical Process Bus timing checks

Turn hidden timing assumptions into visible engineering evidence.

The product focuses on early visibility, repeatable lab stimuli, passive timing-health symptoms, and honest field boundaries. Windows software capture is useful for diagnostics, not certified time distribution.

PTP simulator

Controlled Layer-2 frames

Generate Announce, Sync, Follow_Up, Pdelay_Req, Pdelay_Resp, and Pdelay_Resp_Follow_Up patterns for analyzer validation.

Ethernet

VLAN and QinQ aware

Build and inspect untagged, IEEE 802.1Q VLAN, and stacked-tag PTP paths used in Process Bus lab networks.

Monitor

Passive timing-health view

Group observed PTP by domain, source clock identity, sequence behavior, and message-pairing symptoms.

Scenario player

Fault symptoms on demand

Trigger GM lost, missing Follow_Up, degraded clock, sequence jump, GM switch, and stopped Pdelay lab conditions.

RAW NIC

Npcap boundary

Adapter list, MAC-aware source identity, VLAN-aware capture filter, and RAW self-test before lab publication.

Evidence

Reports for discussion

Export concise PDF and ZIP evidence for issue discussion, FAT notes, SAT preparation, or analyzer validation records.

dashboard Real product workflow

Clock profile, live flow, scenarios, VLAN, and health in one workspace.

The desktop workspace is designed for engineers who need to see what the timing layer is doing without jumping between packet dumps, handwritten notes, and generic counters.

Dashboard preview for IEC 61850 Process Bus timing visibility, analyzer validation, and lab scenario testing.

route Engineering workflow

From adapter selection to timing evidence.

Select NIC

Use a wired test adapter, mirror port, TAP, or isolated engineering switch.

Self-test RAW

Open adapter, apply PTP filter, send one Announce, and check local capture or Wireshark.

Choose profile

Use IEC 61850-9-3 lab, analyzer test, or generic PTPv2 defaults.

Exercise scenarios

Generate controlled GM lost, missing Follow_Up, degraded clock, or sequence jump symptoms.

Export evidence

Save session report and attach it to engineering notes or analyzer issue reports.

settings_ethernet RAW NIC mode

Useful for lab visibility, guarded against overclaiming.

RAW mode uses SharpPcap/Npcap to open a Windows adapter, apply a VLAN-aware PTP filter, capture RX frames, and transmit synthetic Layer-2 PTP packets. It is intentionally isolated from Demo Mode so the app remains usable without native packet drivers.

Npcap is required for real NIC capture and injection.
Administrator rights may be required depending on host policy.
Wireless, VPN, and virtual adapters can behave differently from wired NICs.
Relay acceptance must use an appropriate certified timing source.

CLI quick checks

dotnet run --project .\src\PtpLabClock.Console -- --list

dotnet run --project .\src\PtpLabClock.Console -- \
  --raw-self-test --adapter-index 0 --domain 0

dotnet run --project .\src\PtpLabClock.Console -- \
  --raw-self-test --adapter-index 0 --domain 0 \
  --vlan --vlan-id 100 --vlan-pcp 4

help FAQ

Clear boundaries for real substation work.

Is this a PTP grandmaster replacement?

No. It is a simulator and diagnostic companion. It does not provide certified hardware timestamping or grandmaster-grade time distribution.

Can this help before SV injection?

Yes, mainly as a monitor and lab visibility tool. It can help confirm timing traffic presence and analyzer behavior, but relay acceptance still depends on a real valid timing source.

Does it support VLAN and QinQ?

Yes. The protocol layer and RAW filter are designed for untagged, VLAN-tagged, and stacked VLAN PTP visibility checks.

Is it safe to run on a live station network?

Use it only in controlled lab or approved engineering capture paths. Do not publish synthetic traffic into operational protection networks.
